PREQUALIFIED WELDING PROCEDURE SPECIFICATIONS FOR STEEL (eBooks)

322 Prequalified Welding Procedure Specifications developed in conformance with AWS D1.1/D1.1M:2020 Structural Welding Code - Steel.

  • Are you required to have qualified Welding Procedures to get contracts?
  • Are you looking to achieve consistent quality or improve it?
  • Do you need to develop Welding Quality Standards for your welding operations?
  • Are you a CWI looking to have a library of welding procedures?

If you are welding steel and using GMAW (Mig), Gas-Shielded FCAW (Flux-core), Self-Shielded FCAW (Gasless Flux-core) MCAW (Metal-core) or SMAW (stick) welding processes this publication has you covered.

322 Prequalified procedures covering the welding processes above.

NOTE: This product is offered electronically in PDF files available for immediate download. This is not a physical product.

BUY NOW
$697

FREE BONUS: HOW TO USE, DEVELOP AND REVISE PREQUALIFIED WELDING PROCEDURES

FREE BONUS: HOW TO USE, DEVELOP AND REVISE PREQUALIFIED WELDING PROCEDURES

Modify your prequalified WPSs or create new ones with this easy-to-follow guide. Need to use a different filler metal? No problem! Follow this guide and ensure you are always in compliance with AWS D1.1/D1.1M Structural Welding Code - Steel.

Welding procedures are an essential component of all welding quality standards. This publication contains 322 ready-to-use prequalified welding procedure specifications developed in conformance with AWS D1.1/D1.1M:2020 Structural Welding Code - Steel. A single prequalified welding procedure can cost between $225 - $275. If you don't take advantage of using prequalified welding procedures you may need to pay between $300 - $1200 to qualify procedures by testing. A fabrication facility requiring only 8 welding procedures could potential spend over $8000 obtaining these documents.

  • 42 WPSs for GMAW (Mig .035", .045", .052" diameter wires)
  • 42 WPSs for FCAW-G (Flux-core Gas-shielded .045", .052, 1/16" diameter wires)
  • 42 WPSs for FCAW-G (Flux-core Gas-shielded 1/16", 5/64", 3/32" diameter flat/horizontal only wires)
  • 42 WPSs for MCAW (Metal-core .045", .052", 1/16" diameter wires)
  • 42 WPS for FCAW-S (Flux-core Self-shielded .068", .072", 5/64" diameter wires)
  • 56 WPS for SMAW (Stick 3/32", 1/8", 5/32", 3/16" diameter E7018 electrodes)
  • 56 WPS for SMAW (Stick 3/32", 1/8", 5/32", 3/16" diameter E6010 electrodes)

322 Total prequalified welding procedure specifications

Prequalified Welding Procedures must use the prequalified weld joints provided by AWS D1.1/D1.1M:2020 Structural Welding Code - Steel. The WPSs in this publication use the 14 most common joints which cover fillet welds, partial joint penetration welds and complete joint penetration welds. These welding procedures may be used with all other prequalified joints as well.

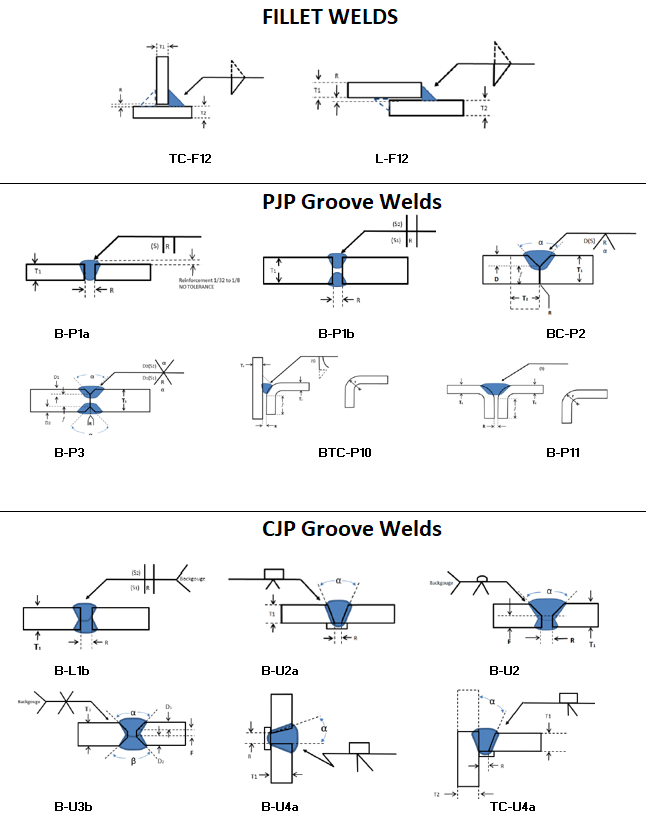

Below are the 14 joints included for every process and every filler metal diameter.

ADDITIONAL BENEFITS

Easily create additional prequalified welding procedures

FREE GUIDE - Use with your prequalified WPSs

With the free guide on HOW TO USE, DEVELOP AND REVISE PREQUALIFIED WELDING PROCEDURES expand these 322 prequalified welding procedures into many more. Simply use additional joint configurations or different filler metal specification and shielding gases as permitted by AWS D1.1/D1.1M Structural Welding Code - Steel. All you need to do is look up details for additional joints and check to make sure the new filler metal and shielded gas is allowed for prequalification with the free easy-to-follow guide.

Ready to use documents

Sample Prequalified WPS

The prequalified welding procedure specifications are ready to use. All you need to do is enter your company information along with a signature for approval and you are in business!

You can also take the information provided in these welding procedures and use your own form and customize it to your liking.

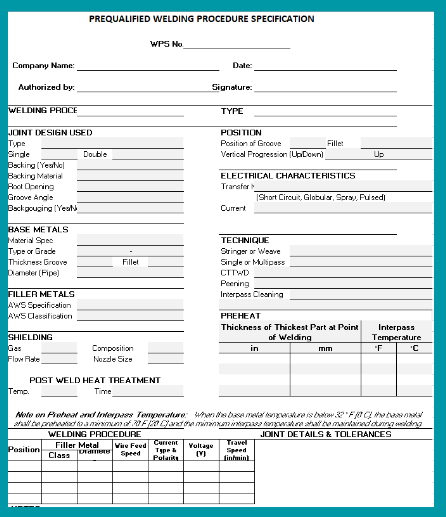

Blank form provided for additional customization

A blank form is provided along with the prequalified welding procedures. It is also included with your purchase as a Microsoft Excel file for easy customization. Simply use the details found in the prequalified WPSs and add your company logo or any other information.

Digital format to use anywhere

Easily pull up your WPS on smartphone or tablet

All 322 prequalified welding procedures are provided in PDF files which makes it convenient to access anywhere. The files may be printed to provide to welders, supervisors, quality personnel or whoever else needs access to them. They can also be viewed and saved on smartphones, tablets, ipads, laptops or any other device that can open PDF files.

Provided in the format specified by AWS D1.1

All Prequalified WPS in conformance with AWS D1.1

All prequalified procedures are written following the format provided by AWS D1.1/D1.1M:2020 Structural Welding Code - Steel. This ensures that no essential information is left out and makes it easier for inspectors and auditors to evaluate and approve the welding procedures.

SAMPLE PREQUALIFIED WELDING PROCEDURE SPECIFICATION

(All 322 WPSs are provided in the format shown below)

Sample Prequalified Welding Procedure Specification (above)

Get all 322 Prequalified Welding Procedures!

Plus: FREE GUIDE - How to use, develop and revise prequalified WPSs

*NOTE: THIS IS NOT A PHYSICAL PRODUCT. YOU WILL IMMEDIATELY BE ABLE TO DOWLOAD PDF FILES FOR THIS PUBLCIATION AND YOUR PREQUALIFIED WPSs WHEN YOU COMPLETE YOUR PURCHASE.

Buy Now
$697

FAQs

My customer requires my company to have qualified welding procedures per AWS D1.1. Can I use these procedures?

Yes. These procedures are prequalified based on the requirements of Clause 5 (Prequalification) of AWS D1.1/D1.1M:2020 Structural Welding Code - Steel, and therefore exempt from testing.

Can I make changes to prequalified welding procedures?

Yes.  Changes are permissible as long as they follow the requirements of AWS D1.1. Simply used the bonus guide How to Use, Develop and Revise Prequalified WPSs to make changes to your procedures.

The prequalified welding procedure I need specifies AWS Classification ER70S-6 but I need to use ER70S-3.  Can I still use this procedure?

Yes.  Per the requirements of AWS D1.1 for prequalified welding procedures any ER70S-X electrode is permitted for welding Group I and Group II steels. Simply follow the recommended parameters by the manufacturer of the filler metal and revise your prequalified WPS.

Why do prequalified procedures say “verify that welding parameters conform to the filler metal manufacturer’s recommendations?”

One requirement of prequalified WPS is that the welding parameters such as wire amperage and voltage are within the recommendations of the manufacturer of the filler metal you are using.  Changes are you will never need to make adjustments, but you must always check.

What happens if I need to use a joint that is not included in this package?

These prequalified welding procedures cover 14 of the most common joints. However, there are more prequalified joints allowed by AWS D1.1/D1.1M Structural Welding Code - Steel.  All you need to do is look up the joint you need in this code and follow the joint details and tolerances.  You can create a new prequalified welding procedure using all of the other information already provided in the procedures included in this package.

The FREE BONUS: How to Use, Develop and Revise Prequalified Welding Procedures Specifications will walk you through all of this.  It is simple as long as you follow this step-by-step guide.



What if I have questions after I make the purchase and start using the welding procedures?

As with our other resources, all you have to do is email us.  As questions come in, we will add them to this FAQ and share them with all who have purchased the product.  Chances are if you have a question then many more will. This way we help everyone out which is one of the things we love about our community. You can email us anytime at info@weldinganswers.com
